While CPP is known for its path breaking products and global certifications, our uncompromising values are at the heart of everything we do.
We manufacture GRP/FRP Pipes, Fittings, Ducts for Chemical, Power Plants, Desalination, Water and Oil and Gas Plants. Sizes range from 15mm(NB) upto 4000mm(NB) and we can design for pressures upto 64 bars.
Design standards that we follow are:
Resins that we use are:

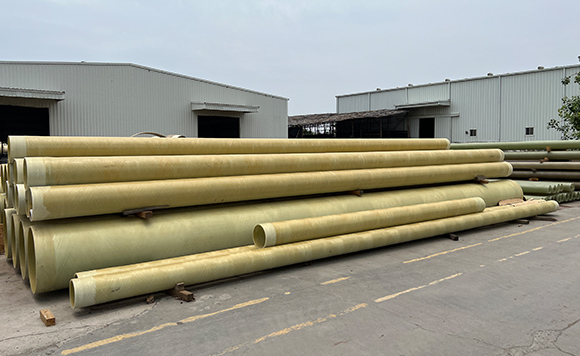

GRE Piping
We manufacture GRE Pipes, Fittings, Ducts for Fire Water Service and Oil and Gas Plants, Chemical, Power Plants, Desalination.
Sizes range from 15mm(NB) upto 4000mm(NB) and we can design for pressures upto 64 bars.
The resin that we use is Epoxy Resin. The benefit of epoxy resin is that they are fire retardant.
Design standards that we follow are:

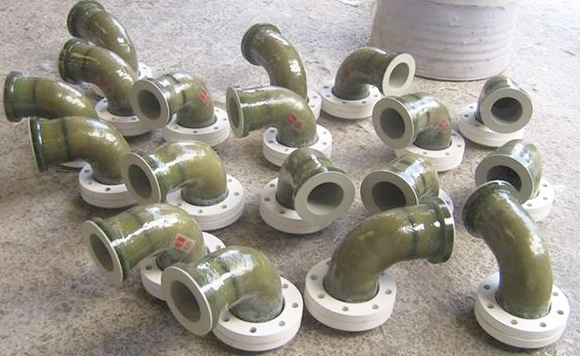

Thermoplastic Lined GRP Piping
We manufacture Thermoplastic Lined GRP/FRP Pipes, Fittings, Ducts for Chemical, Power Plants and Oil and Gas Plants where high corrosive fluids flow through the piping.
The thermoplastic provides the corrosion resistance and FRP provides the structural strength.
Sizes range from 15mm(NB) upto 4000mm(NB) and we can design for pressures upto 64 bars.
Design standards that we follow are:
Thermoplastic Liner we use are:
Resins that we use are:

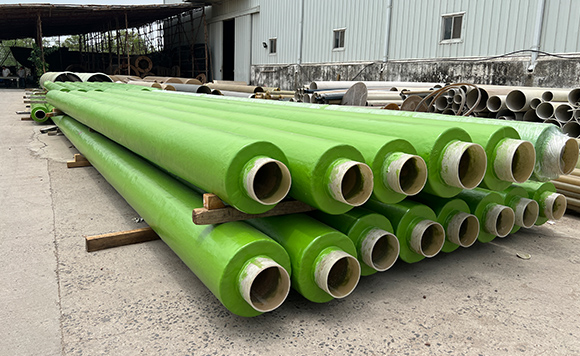

Pre-Insulated GRP Piping
CPP introduces GRP Insulated Pipes & Fittings (ThermoShield) in the market with a view of reducing energy cost, keeping in mind the safety and reliability issues. The Insulated GRP piping system is corrosion resistant and results in maintenance free operations. The most important reason to insulate a pipeline is to save energy cost. Adequate thermal insulation prevents thermal losses.
Deterioration of insulation can have a significant impact on the energy consumption and hence a long-term solution provided by ThermoShield prevents increase in energy cost. The material of insulation is also important to achieve low thermal conductivity by incorporating insulation as sandwich material between GRP layers to ensure that pipe shall remain insulated throughout its lifetime.
GRP Pipes are corrosion resistant to seawater, chilling water and wide range of chemicals.
Advantages of ThermoShield Piping
Applications
ThermoShield are utilized to minimize the heat transfer of the medium for the following applications: -

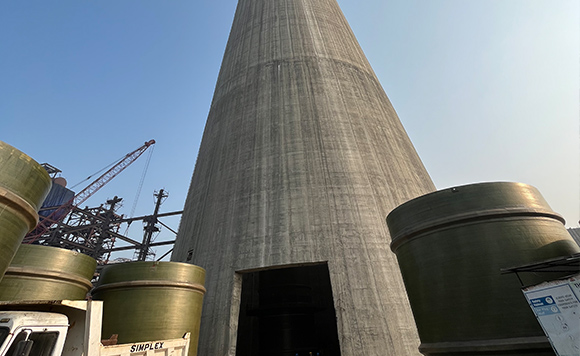

GRP Stacks
We manufacture FRP / GRP stacks for Power Plants and Flue Gas Desulphurization plants.
The size of stack that we can manufacture are ranging upto 10 meter diameter.
FRP / GRP has successfully replaced expensive and long lead time exotic steel lining / flake glass lining. Further, ease of installation and elimination of thermal insulation makes FRP Stack liners the material of choice world over.

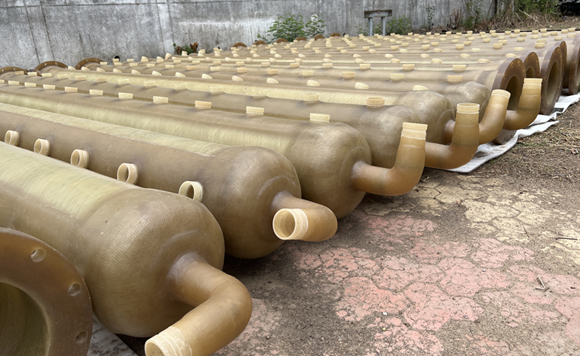

GRP Headers
We manufacture FRP / GRP Anolyte and Catholyte headers for Chemical, Water, Power Plants and Flue Gas Desulphurization Plants, Desalination.

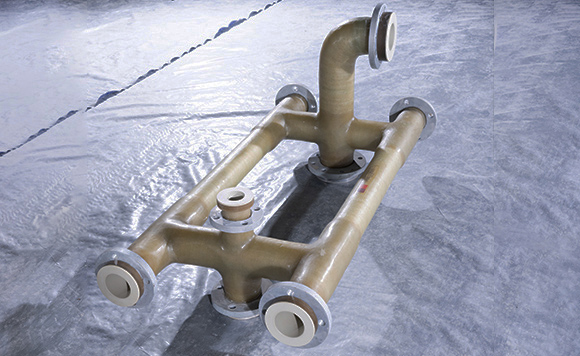

Green H2 Piping
Producing Green H2 using alkaline electrolysis is very similar to electrolysis of NaOH and NaCl in a Membrane Cell. CPP has a proven track record of design, manufacture and installation of PP - FRP, CPVC - FRP, PVC-FRP and PVDF - FRP piping for the Chlor Alkali Membrane cell industry.
